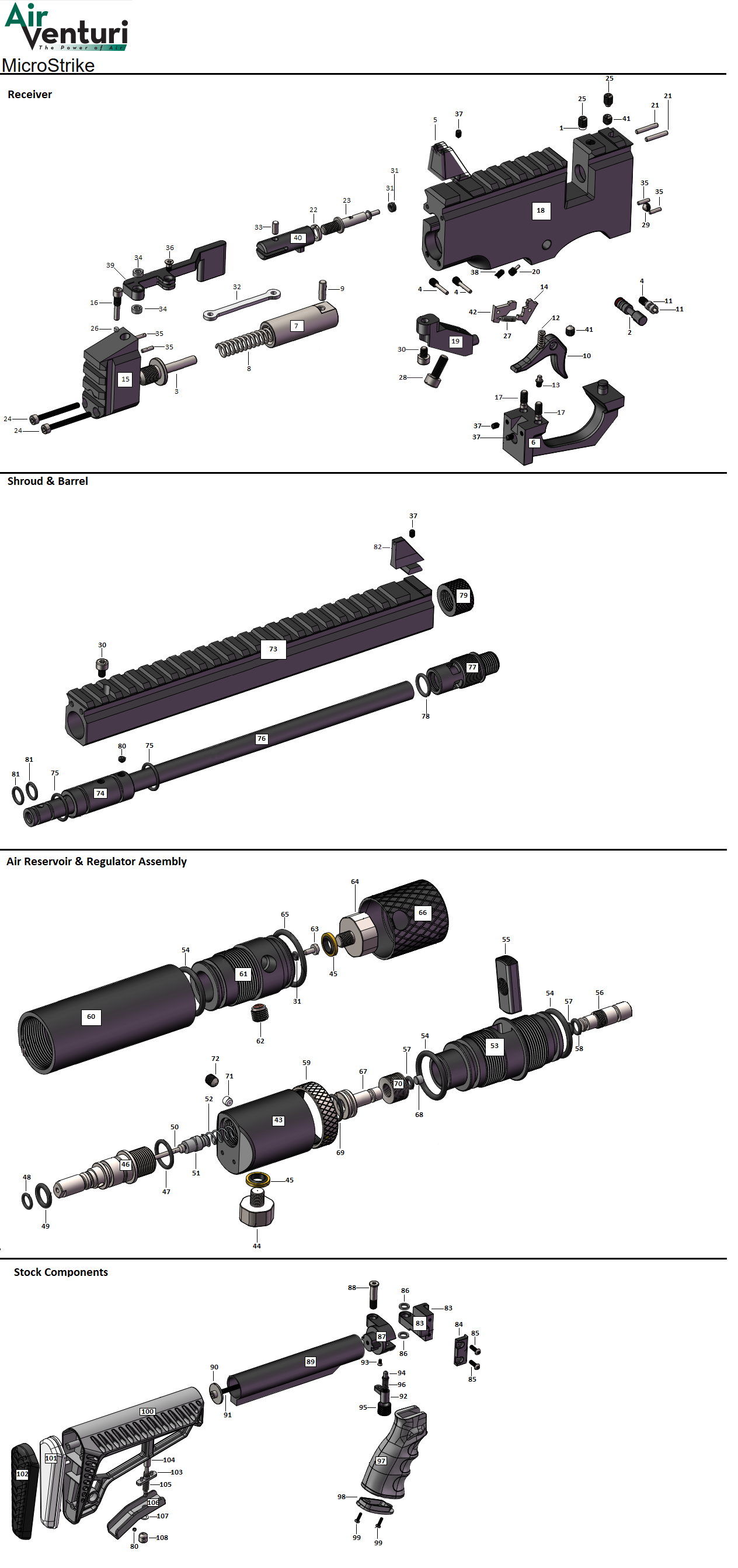

Product Schematics for Air Venturi MicroStrike PCP Air Pistol

Click a Air Venturi MicroStrike PCP Air Pistol part number to check availability and price

Available Parts

Click to select part(s)

Air Venturi Micro Strike Connecting Bracket
Air Venturi Micro Strike Limit Screw
Air Venturi Micro Strike 2.5X15 Pin
Air Venturi Micro Strike M6 Gasket
Air Venturi Micro Strike .22 Pellet Probe
Air Venturi Micro Strike M3X30 Screw
Air Venturi Micro Strike 3MM Ball
Air Venturi Micro Strike M5X12 Screw
Air Venturi Micro Strike Cocking Lever Conn Rod
Air Venturi Micro Strike Fixed Axis
Air Venturi Micro Strike Side Lever Action Sleeve
Air Venturi Micro Strike 2X8 Pin
Air Venturi Micro Strike M3 Screw
Air Venturi Micro Strike M3X5 Screw
Air Venturi Micro Strike Cocking Lever Arm
Air Venturi Micro Strike Push Rod Seat
Air Venturi Micro Strike Regulator Plug
Air Venturi Micro Strike Low Pressure Gauge
Air Venturi Micro Strike Connecting Valve
Air Venturi Micro Strike Air Release Valve Stem
Air Venturi Micro Strike Air Release Valve Cover
Air Venturi Avenge-X High Capacity Magazine, .177 cal, 20 rds
Air Venturi Micro Strike Front Spring
Air Venturi Micro Strike Plug
Air Venturi Avenge-X High Capacity Magazine, .22 cal, 16 rds
Air Venturi Micro Strike 23.8X3.1 O-Ring, 75
Air Venturi Avenge-X High Capacity Magazine, .25 cal, 13 rds
Air Venturi Micro Strike Plug Nut
Air Venturi Micro Strike Seal Shaft
Air Venturi Replacement Part 4X2MM O-Ring, 75
Air Venturi Micro Strike Regulator Wheel
Air Venturi Micro Strike Air Reservoir Tube
Air Venturi Micro Strike Front Plug
Air Venturi Micro Strike 6K Burst Disc
Air Venturi Micro Strike Check Valve Pin
Air Venturi Micro Strike High Pressure Gauge
Air Venturi Micro Strike Plug Cover
Air Venturi Micro Strike Regulator Shaft
Air Venturi Micro Strike Sealing Head
Air Venturi Micro Strike 11.5X1.8MM O-Ring, 90
Air Venturi Micro Strike Bleeder Plug
Air Venturi Micro Strike Shroud with Rail
Air Venturi Micro Strike Shroud Plug
Air Venturi Micro Strike 13.8X1.6MM O-Ring, 70
Air Venturi Micro Strike Barrel
Air Venturi Micro Strike Threaded End Cap
Air Venturi Micro Strike Air Reservoir Tube Cover
Air Venturi Micro Strike Front Sight
Air Venturi Micro Strike Link Block
Air Venturi Micro Strike Right Link Block
Air Venturi Micro Strike M4X14 Screw
Air Venturi Micro Strike Connecting Block Gasket
Air Venturi Micro Strike Front Link Block
Air Venturi Micro Strike M8X34 Screw
Air Venturi Micro Strike Stock Buffer Tube
Air Venturi Micro Strike M5X40 Screw
Air Venturi Micro Strike Pin Fastner
Air Venturi Micro Strike M3X7 Screw
Air Venturi Micro Strike Folding Pin
Air Venturi Micro Strike Folding Pin Cap
Air Venturi Micro Strike Folding Pin Spring
Air Venturi O-Ring 14x2mm, 70D
Air Venturi O-Ring 7x1.5MM, 70D
Air Venturi O-Ring 10x2.5MM, 70D
Avenge-X AT/BT Adjusting Lever Buckle
Avenge-X AT/BT Adjustment Lever Bolt
Avenge-X AT/BT Adjustment Lever Screw, M3x5
Avenge-X AT/BT Adjustment Lever Spring
Avenge-X AT/BT Adjustment Lever Washer
Avenge-X AT/BT Butt Plate
Avenge-X AT/BT Rear Stock Washer, Connector
Avenge-X AT/BT Screw
Avenge-X AW/AAW/BW/BBW M5 Stock Washer
Air Venturi Avenger Magazine, .177 Cal, 10 rds.
Air Venturi Avenger Magazine, .22 Cal, 10 rds.
Air Venturi Avenger Magazine, .25 Cal, 8 rds.
Air Venturi Avenger Bolt Probe O-Ring, .25
Air Venturi Avenger 1.5MM x 8MM O-Ring
Avenge-X Hammer Holder B
Avenge-X M5x6 Flat Point Screw
Avenge-X M6X8 Cone Point Allen Screw
Avenge-XL M5X7.5 Screw
Avenge-X Power Adjustment Valve Spring, NON-BULLPUP
Washer
Avenge-XL M4X8 Screw
Avenge-X AT/BT Rear Stock
Air Venturi Avenger Bolt Probe O-Ring, .22
Air Venturi MicroStrike Caliber Change Kit, .177 Caliber
Air Venturi MicroStrike Caliber Change Kit, .22 Caliber
Air Venturi MicroStrike Caliber Change Kit, .25 Caliber
Avenge-XL Butt Stock Lower Cover
Avenge-XL Rear Stock Adjustment Lever
Avenge-XL Handle
Avenge-XL Grip Cover
Air Venturi Micro Strike .177 Pellet Probe
Air Venturi Micro Strike 1.42X1.52MM O-Ring, 70
Air Venturi Micro Strike Safety Pin
Air Venturi Micro Strike .25 Pellet Probe
Air Venturi Micro Strike Regulator Shaft 2
Air Venturi Micro Strike Fixed Shaft Screw
Air Venturi Micro Strike Barrel .177
Air Venturi Micro Strike Rear Sight
Air Venturi Micro Strike Trigger Guard
Air Venturi Micro Strike Hammer
Air Venturi Micro Strike Hammer Spring
Air Venturi Micro Strike Barrel .25
Air Venturi Micro Strike Connecting Rod
Air Venturi Micro Strike Trigger Blade
Air Venturi Micro Strike Gasket
Air Venturi Micro Strike 0.8X4.2X13
Air Venturi Micro Strike Trigger Adjusting Screw
Air Venturi Micro Strike Bottom Sear
Air Venturi Micro Strike Cocking Lever Set Screw
Air Venturi Micro Strike Connecting Screw
Air Venturi Micro Strike Receiver Block
